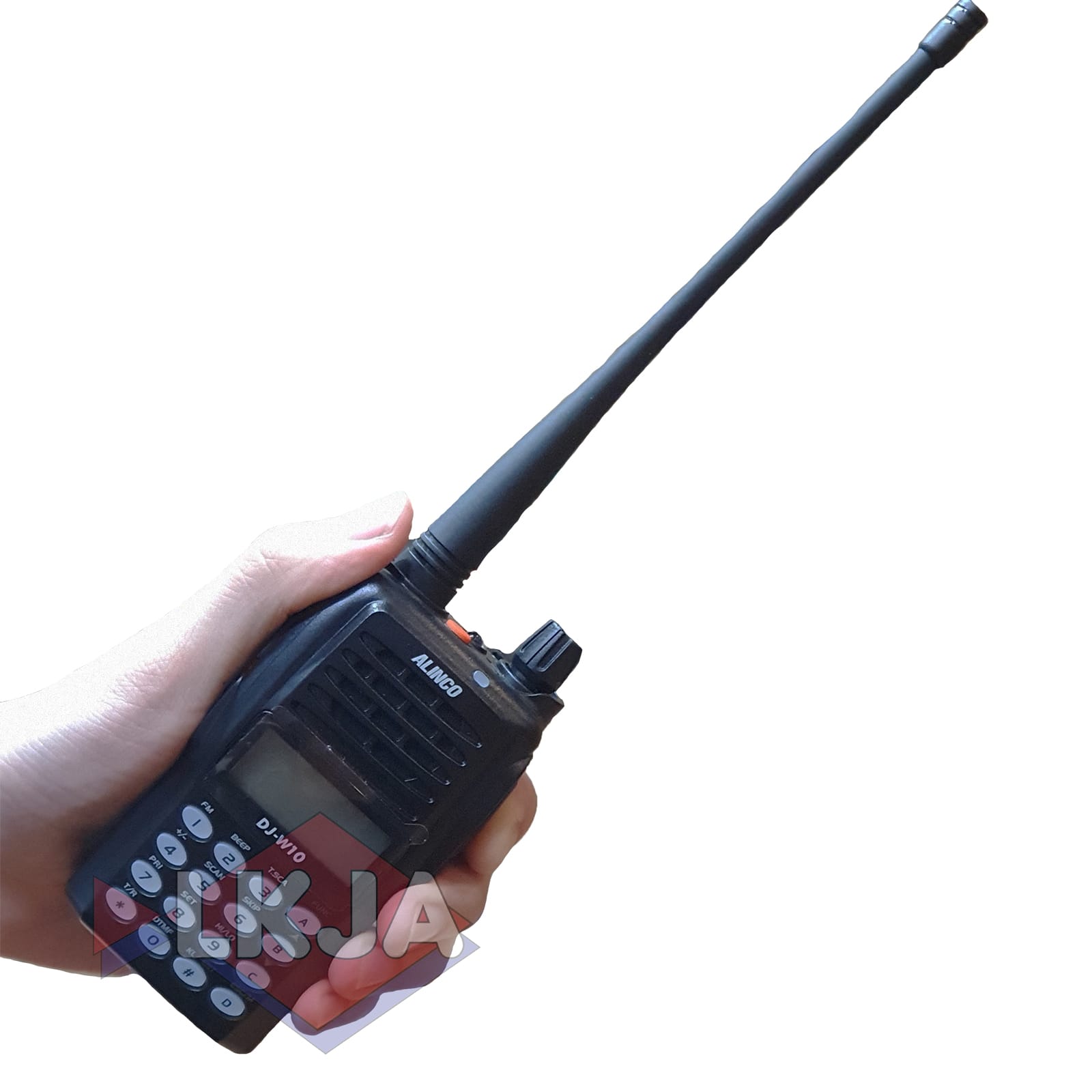

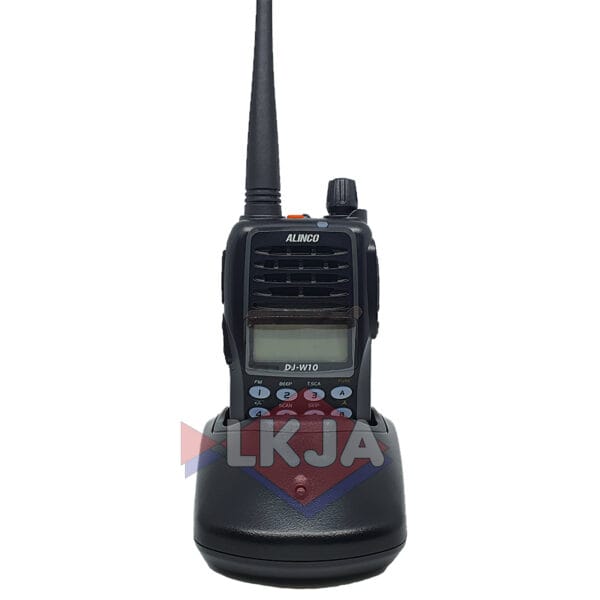

Alinco DJ-W10

• Frequency range : Tx : 156.025-157.425MHz Rx : 156.050-163.275MHz • Frequency stability : ±10ppm • Antenna impedance : FM (16K0G3E) • Rated voltage : 50 Ω • Current Consumption : 0.35A (Max audio output) 1.5A (TX / 5W) / 0.9A (TX / 1W) (Battery life up to 8 hours with TX5 / RX5 / Stand-by 90 cycles) • Operating temperature : －20～ +60℃ • Ingress protection : IPX7 • Weight (approx.) : 288g with battery, antenna and clip • Dimensions (WxHxD) : 63mm x 138mm x 43mm ( 6,3x13,8x4,3 cm) TRANSMITTER • RF Output Power : 5 W / 1 W • Modulation Type : Variable Reactance • Spurious Emission : ≥68dB • Frequency deviation : ± 5KHz RECEIVER • Circuit : Double-Conversion Superheterodyne • Intermediate Frequencies : 1st: 21.7 MHz 2nd: 450 kHz • Sensitivity : 0.22µV (12 dB SINAD) • Adjacent Channel Selectivity : 70 dB • Intermodulation response : 68 dB • Audio Output : 0.5W ( 8Ω10 %THD)

Hytera Type: AP518 Military Standard MIL-STD-810G Frekuensi:VHF (136 – 174 MHz) & UHF 400 (400 – 470 MHz) Power: 5

• Frequency Range : RX/TX : 136 - 174 MHz RX/TX : 400 – 470 MHz • (VHF 136 - 174 MHz) (UHF 400 - 470 MHz) • Power 5W/4W • Voltage 7.2V • Battery 1800 MAh

Frequency Range : Frequency Range Receive: 0.5 - 1.8 MHz (BC Band) 1.8 - 30 MHz (Shortwave Band) 30 - 59 MHz (6 Meter Amateur) 0 59 - 108 MHz (FM) 0 108 - 137 MHz (Air Band) 0 137 - 174 MHz (144 MHz HAM) 0 174 - 222 MHz (VHF-TV) 0 222 - 420 MHz (ACT1: Action Band 1) 0 420 - 470 MHz (430 MHz HAM) 0 470 - 729 MHz (UHF-TV) 0 803 - 998.99 MHz (ACT2: Action Band 2 Cellular Blocked) Frequency Range Transmit: 144 - 148 MHz 0 222 - 225 MHz 0 430 - 450 MHz Channel Steps: 5/9/10/12.5/15/20/25/50/100 kHz 0 (10kHz: AMBC U.S.A. version) Frequency Stability: ±5 ppm +14 °F to +122 °F (-10 °C to +50 °C) Repeater Shift: ±600 kHz (144 MHz) 0 ±1.6/5.0/7.6 MHz (430 MHz) Emission Type: F2D, F3E Antenna Impedance: 50 Ohms Supply Voltage: Nominal: 7.4 VDC, Negative Ground Operating Voltage: 11-16 VDC Negative Ground EXT DC Jack Current Consumption: 150 mA (Receive) 0 60 mA (Standby, Saver Off) 0 30 mA (Standby, Saver On) 0 200 µA (Auto Power Off) 0 1.6 Amps (5 Watts TX, 144 MHz) 0 1.5 Amps (222 MHz) 0 1.8 Amps (Hi TX, 430 MHz) 0 Operating Temperature: -20°C to +60°C 0 Case Size: 2.3x3.5x1.1 inches (58x90x29 mm) (without knob and antenna) 9.5 oz (270g) 0 RECEIVER Circuit Type: N-FM, AM Double-conversion, W-FM Triple Conversion IFs: 1st: 47.25 MHz (N-FM) 0 45.8 MHz (W-FM) IFs: 2nd: 450 kHz (N-FM) 0 10.7 MHz (W-FM) 0 1 MHz (W-FM) Sensitivity: 1.5 µV for 10dB S/N (0.5-30MHz, AM) 0 1.0 µV for 12dB SINAD (59-108 MHz/470-540MHz, W-FM) 0 0.5 µV for 12dB SINAD (54-59MHz/300-420MHz, N-FM) 0 0.18 µV for 12dB SINAD (420-470 MHz N-FM) Selectivity (±6dB/±60dB): 12 kHz/35 kHz (N-FM) 200 kHz/500 kHz (W-FM) AF Output: 200 mW @ 8 Ohms for 10% THD (@ 7.4 V DC) 0 TRANSMITTER RF Power Output: 144/430 MHz 5.0/2.5/1.0/0.3 watts 0 222 MHz 1.5/1.0/0.5/0.2 watts Modulation Type: Variable Reactance Maximum Deviation: ±5.0 kHz Spurious Emission: At least 60 dB down Microphone Impedance: 2 k Ohm
