Alinco DJ-W10
Back to products
Alinco DJ-W35
ALINCO

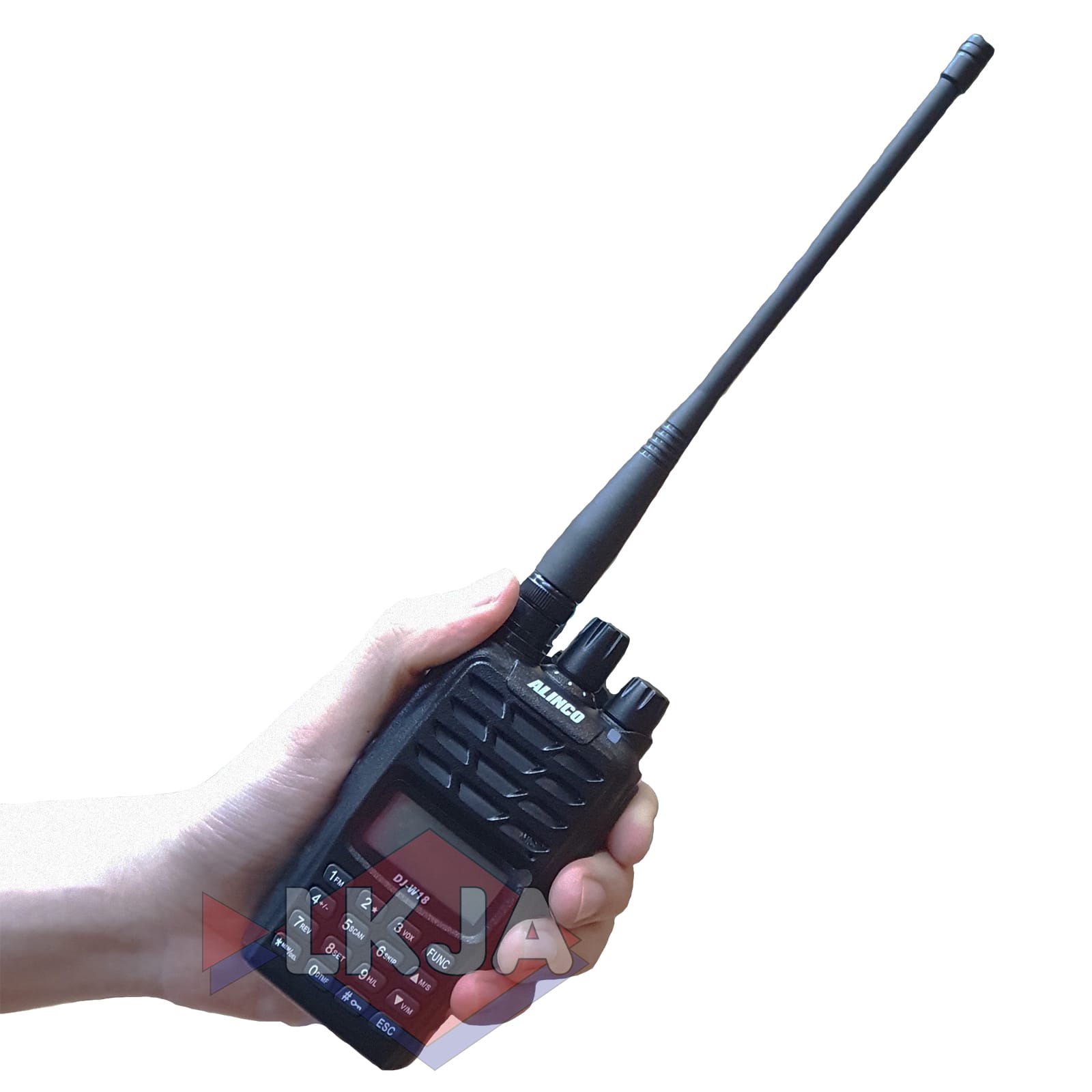

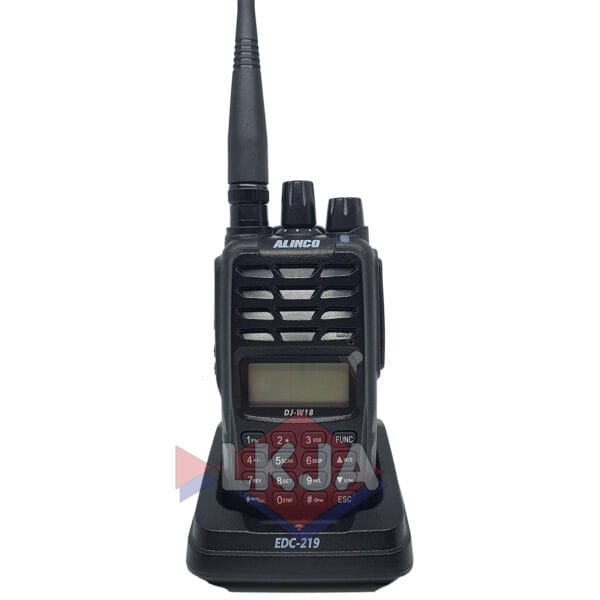

Alinco DJ-W18

• Frequency Coverage : TX/RX : 136-174MHz Rx only : FM radio (76 – 107.95MHz) AM (118 – 135.99MHz
• Modulation : F3E(16K0F3E / 11K0F3E / RX only WFM,AM)
• Frequency stability : ±2.5ppm
• Power supply requirement : 7.4V (Battery)
• Current drain (Approx.) : 1500mA TX / 300mA receive at Max audio output 80mA squelched
• Usable temperature range : －20～ +60℃(-4～140°F)
• Channel step : 2.5, 5, 6.25, 10, 12.5, 20, 25, 30 dan 50 KHz
• Dimensions : 11,8 x 5,9 x 3,8 cm (With battery pack)
• Weight : approx.230g inclusive of battery pack and antenna
TRANSMITTER
• Output Power (Approx) : Approx. 5W / 2W / 1W
• Frequency Deviation : ±5kHz / ±2.5kHz
• Spurious emission : Less than －27dBm
RECEIVER
• Receiver System : Direct conversion
• Sensitivity (12dB SINAD Wide/Narrow) : Wide -12dBu / Narrow -9dBu
• Adjacent Channel Selectivity : Wide More than 65dB Narrow More than 60dB
• Audio output power : 1W (10% distortion)

Compare
Add to wishlist
Kategori:
Informasi Tambahan
Brand

ALINCO
Frequency Range

RX/TX : 136 – 174 MHz
Battery

1700 MAh
Power

5/2/1W
Voltage

7.4V
VHF

136 – 174 MHz
