Brand |
ALINCO |
---|---|
Frequency Range |
RX/TX : 136 – 174 MHz, RX/TX : 400 – 438 MHz |
Battery |
1800 MAh |
Power |
5W/4W/2W/1W |
Voltage |
7.4V |
VHF |
136 – 174 MHz |
UHF |
400 – 480 MHz |

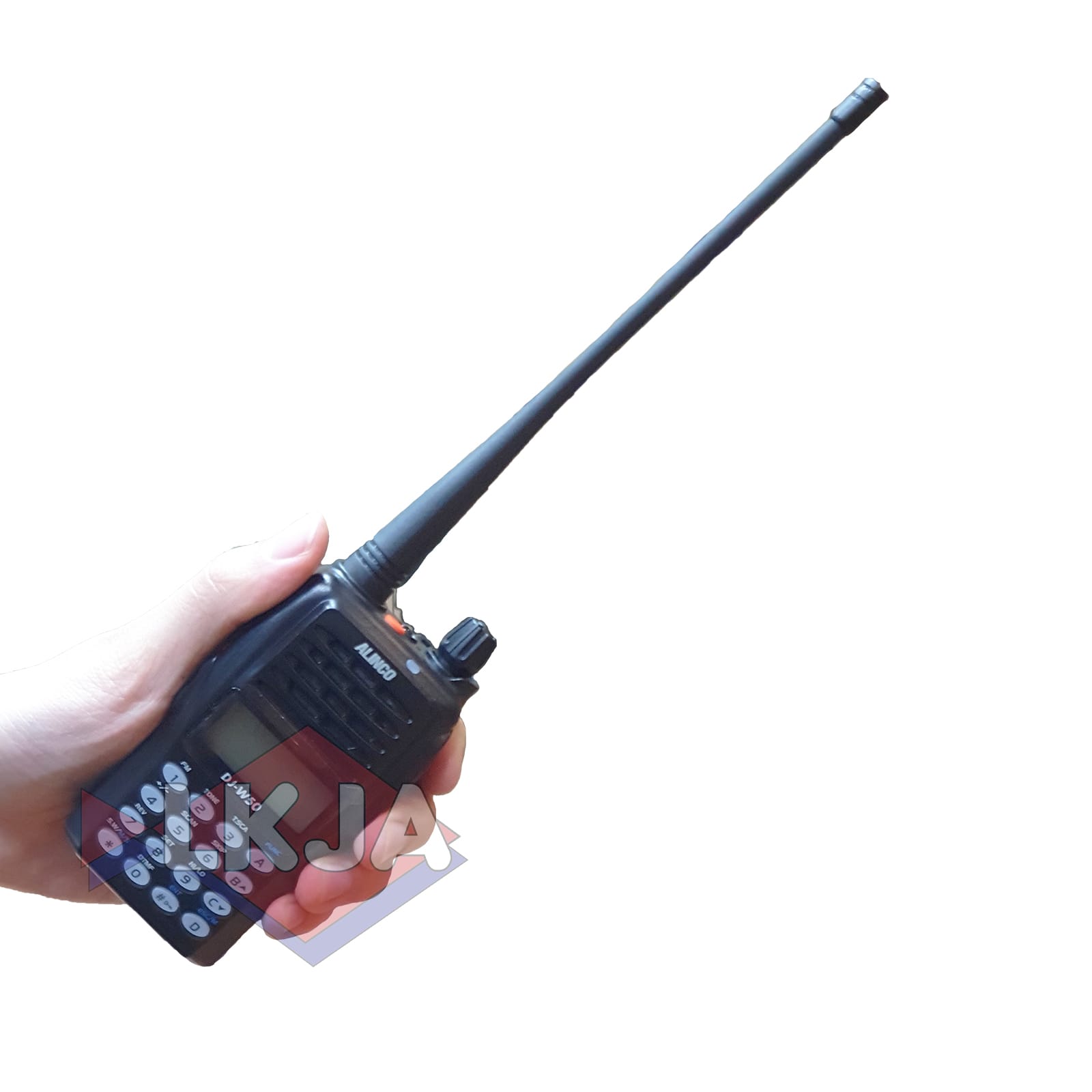

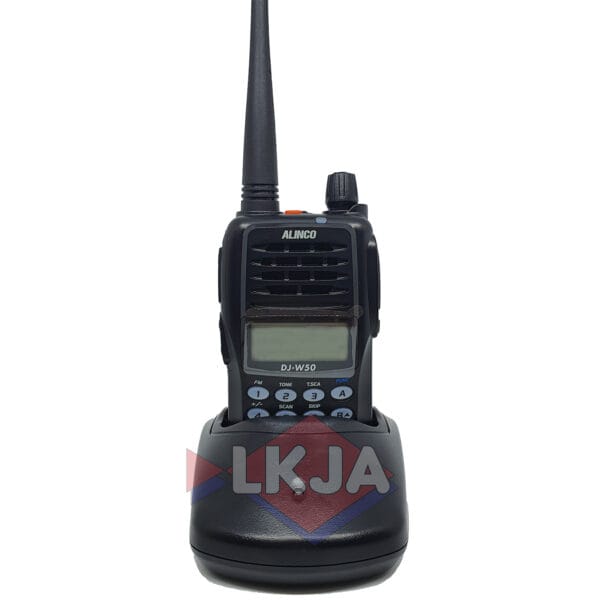

Alinco DJ-W50
• Frequency range: [TX] 144 – 148MHz, 420 – 450MHz [RX] 136 – 174MHz, 400 – 480MHz [ TX/RX] 144 – 146MHz, 430 – 440MHz
• Modulation : F3E (FM)
• Frequency step :2.5, 5, 6.25, 8.33, 10, 12.5, 20, 25, 30 and 50KHz
• Memory channel :200 memory channels in total
• Antenna impedance :50ohm unbalanced
• Frequency stability :+/- 2.5ppm
• Supply voltage :DC 7.4V (Battery)
• Current consumption :1400mA TX / 300mA receive at Max audio output 70mA squelched
• Battery-save ON :average 27mA
• Temperature range :Unit -20 ~ +55digC (-4 ~ 131digF)
• Battery packs : -10digC to +45digC (+14 to +113digF)
• Dimensions :5,9W x 9,8H x 3,5D cm w/o projection
• Weight :approx.227g or 8.01oz inclusive of battery pack and antenna
Transmitter
• Power Output: (Approx.value) : Approx.5 / 2.5 / 1W
• Modulation : Variable reactance FM
• Spurious emission : -60dB or less
• Max. deviation : FM : +/- 5KHz NFM: +/- 2.5KHz
Receiver
• System : Direct-conversion
• Sensitivity : Wide -12dBu / Narrow -9dBu
• Intermediate frequency : 1st IF 38.85MHz, 2nd IF 450 KHz
• Selectivity : -6dB : Wide 12kHz /Narrow 10kHz or more -60dB :Wide 30kHz / Narrow 24kHz or less
• AF output :1W (10% distortion)
