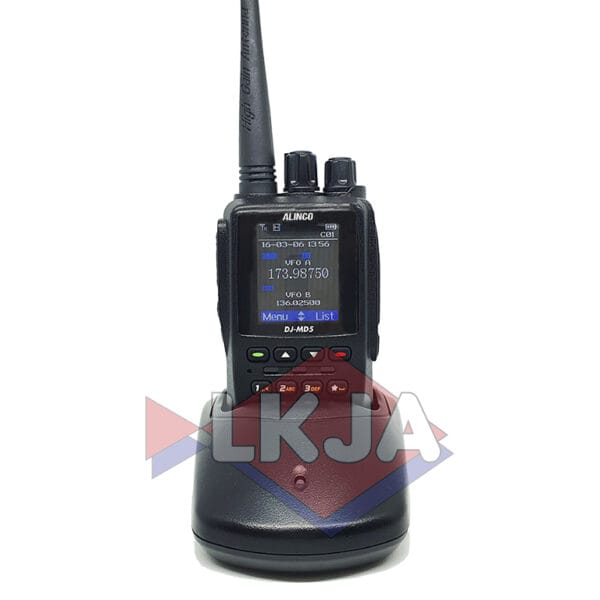

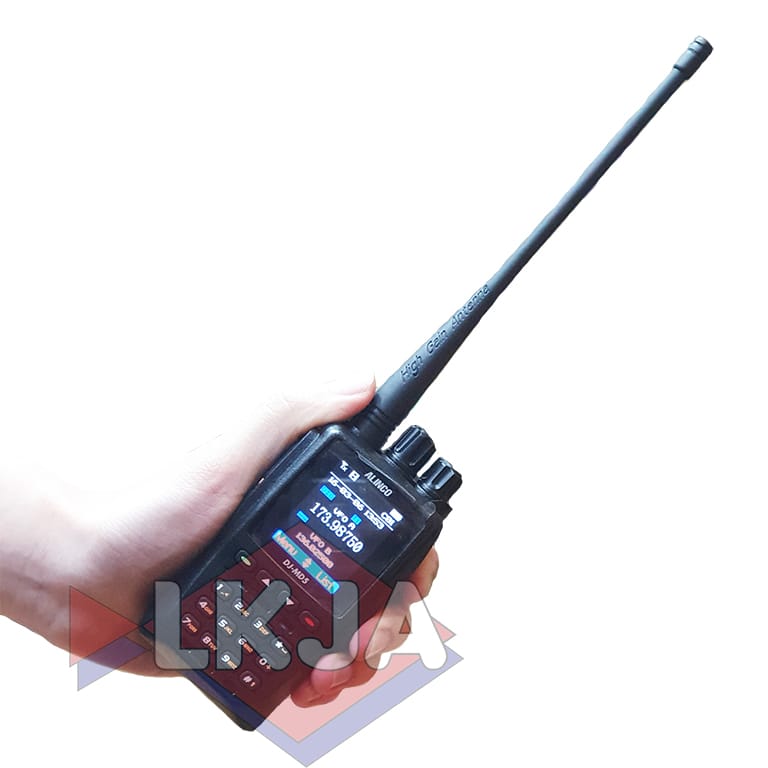

Alinco DJ-MD5

General • Frequency coverage ： [DJ-A11] 136-174MHz [DJ-A41] 400-470MHz • Mode ： F3E(16K0F3E / 11K0F3E) • Programmable channels ： 128 channels • Frequency stability ： ±2.5ppm • Power supply requirement ： 7.4V DC±20% (negative ground) • Current drain (Approx.) ： 1400mA TX / 300mA receive at Max audio output / 70 mA squelched • Usable temperature range ： －20～ +55℃(-4～131°F) • Dimensionn(Projections not included/approx.) ： 59.0W×98.0H×35.0D cm (WxHxD) • Weight : approx.227g or 8.01oz inclusive of battery pack and antenna Transmitter • Output power ： Approx. [A11] 5 / 2 / 0.5W [A41] 4 / 2 / 0.5W • Modulation system ： Variable reactance FM • Spurious emissions ： Less than －36dBm • Max. frequency deviation ： ±5kHz / ±2.5kHz Receiver ●Receive system ： Double conversion superheterodyne ●Intermediate frequencies ： [A11] 38.85MHz / [A41] 26.45MHz ●Sensitivity(12dB SINAD Wide/Narrow) ： －12dBμ or better (0.25μV/0.35μV) or better ●Selectivity ： －6dB : Wide 12kHz /Narrow 10kHz or more －60dB : Wide 30kHz / Narrow 24kHz or less ●Audio output power ： 1000mW(10% distortion)

• RX Frequency Coverage : FM : 136 - 174MHz / 400 - 438MHz (76-108MHz included) WFM : 76 - 107.95MHz AM : 118 - 135.99MHz • TX Frequency Coverage : 136-174MHz 400-438MHz • Modulation : F3E(16K0F3E / 11K0F3E / RX only WFM, AM) • Frequency stability : ±2.5ppm • Power supply requirement : 7.4V (Battery) • Current drain (Approx.) : 1500mA TX / 300mA receive at Max audio output 80mA squelched • Usable temperature range : －20～ +60℃(-4～140°F) • Channel step : 2.5, 5, 6.25, 10, 12.5, 20, 25, 30 and 50 KHz • Dimensions : 11,8x5,9x3,8cm [with battery pack] • Weigh : approx.230g inclusive of battery pack and antenna TRANSMITTER • Output Power (Approx : Approx. 5W(VHF) / 4W(UHF) / 2W / 1W • Frequency Deviation : ±5kHz / ±2.5kHz • Spurious emission : Less than －27dBm RECEIVER • Receiver System : Direct conversion • Sensitivity : Wide -12dBu / Narrow -9dBu (12dB SINAD Wide/Narrow) • Adjacent Channel Selectivity : Wide More than 65dB / Narrow More than 60dB • Audio output power : 1W (10% distortion)

• Frequency Range : A(Main) Band RX : 76 - 108 MHz (FM Broadcast) 108 - 137 MHz (Air Band) RX : 0.5 - 1.8 MHz (AM Broadcast) 1.8 - 30 MHz (SW Band) 30 - 76 MHz (50 MHz HAM) 137 - 174 MHz (144 MHz HAM) 174 - 222 MHz (VHF Band) 222 - 420 MHz (GEN1) 420 - 470 MHz (430 MHz HAM) 470 - 774 MHz (UHF Band) 774 - 999.90 MHz (GEN2) TX: 144 - 148 MHz, 430 - 450 MHz B(Sub) Band RX: 108 - 137 MHz (Air Band) 137 - 174 MHz (144 MHz HAM) 174 - 222 MHz (VHF Band) 222 - 420 MHz (GEN1) 420 - 470 MHz (430 MHz HAM) 470 – 579.999 MHz (UHF Band) TX: 144 - 148 MHz or 144 – 148 MHz 430 - 440 MHz or 430 - 450 MHz Circuit Type: NFM/ AM:Double-Conversion Superheterodyne FM /AM Radio: Direct-Conversion Modulation Type: F1D, F2D, F3E, F7W RF Power Output: 5 W (@ 7.4 V or EXT DC) Channels: 1245 Waterproof Rating: IPX5 Case Size(W x H x D): 62 x 110 x 32.5 mm (w/ SBR-14LI, w/o Knob and Antenna) 62 x 110 x 27 mm (w/o SBR-14LI, Knob and Antenna) Weight: 310 g With SBR-14LI and Antenna TRANSMITTER • RF Power Output : 5W (@7,4V with SBR-28LI) • Modulation Type : F1D, F2D, F3E Variable reactance modulation F7W: 4FSK (C4FM) • Maximum Deviation : ±5.0KHz • Spurious Emmision : At Least 60dB down {@TX Power Hi,L3} At least 50dB down {@TX power L2, L1} Receiver • Circuit Type : AM, NFM: Double-Conversion Super heterodyne AM/FM Radio: Direct-Conversion • Intermediate Frequencies 1st : 47,25 MHz (AM, NFM A Band) 1st : 46,35 MHz (AM, NFM B Band) 2nd : 450 KHz ( AM, NFM) • Selectvity : NFM, AM 12KHz / 35KHz (-6dB /-60dB) • AF Output : 700mW(8Ohms, for 10% THD) Internal Speaker 300mW(8Ohms, for 10% THD) External Speaker Jack

GENERAL • Frequency Range : RX : 136 - 174 MHz : 400 - 480 MHz TX : 144 -148 (146 MHz) 136 - 174 (Asia) 430 - 450 (440 MHz) 400 - 480 (Asia) FM Broadcast : 65-108 MHz • Channel Steps : 5/6,25/10/12,5/15/20/25/50 KHz • Frequency Stability : ±5ppm + 14˚F to + 140˚F |- 10˚C to + 60˚C) • Emmision Type : F2D, F3E, • Antenna Impedance : 50 Ohms • Current Cosumption : 190 mA (Recive) 200mW Output 95 mA (Standby,Saver Off) 23 mA (Standby Saver On • Operating temperature : -4˚F to +14˚F |- 20˚C to +60˚C • Case Size : 5,2cm x 100,4cm x 3,1cm W/O Knob and anntena • Supply Voltage : Nominal 7,4V DC, Negative Ground TRANSMITTER • RF Power Output : 5W (High)/ 2,5W(Middle)/ 0,5W(Low) @7,4V • Modulation Type : Variable Reactance • Maximum Deviation : ±5.0KHz • Spurious Emmision : At Least 60dB down {@High and Middle Power} At least 40dB down {@Low power} • Microphone Impedance : 2k Ohms Receiver • Circuit Type : Direct-Conversion • Sensivity : 0,2V for 12dB SINAD {140 – 150MHz, NFM} 0,2V for 12dB SINAD {420 – 470MHz, NFM} * FT-65 only • Selectvity : 12KHz / 35KHz (-6dB /-60dB) • AF Output : MAX Power 1W@16Ohms, 0,8W @ 16 Ohms for 10% THD
