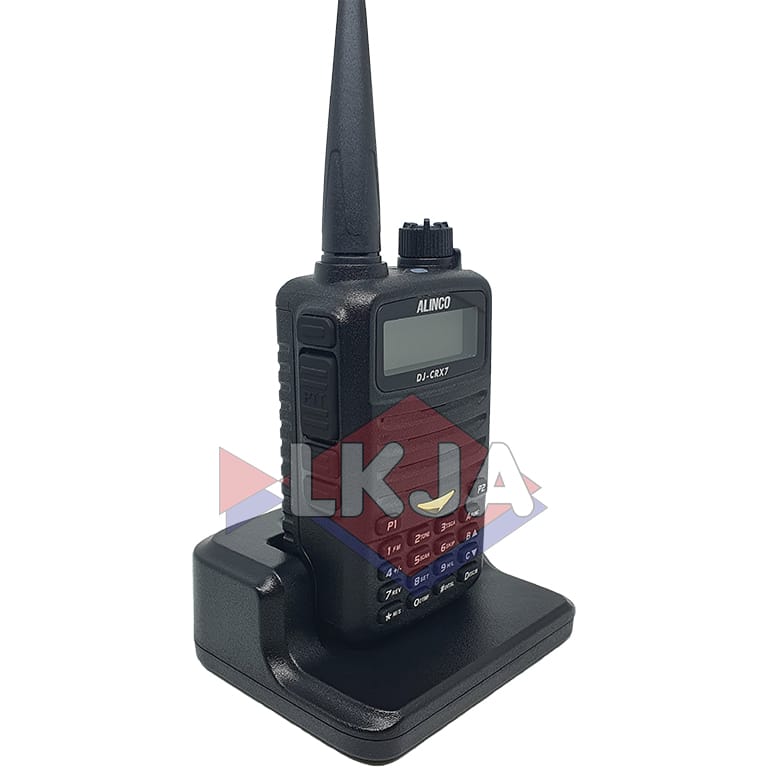

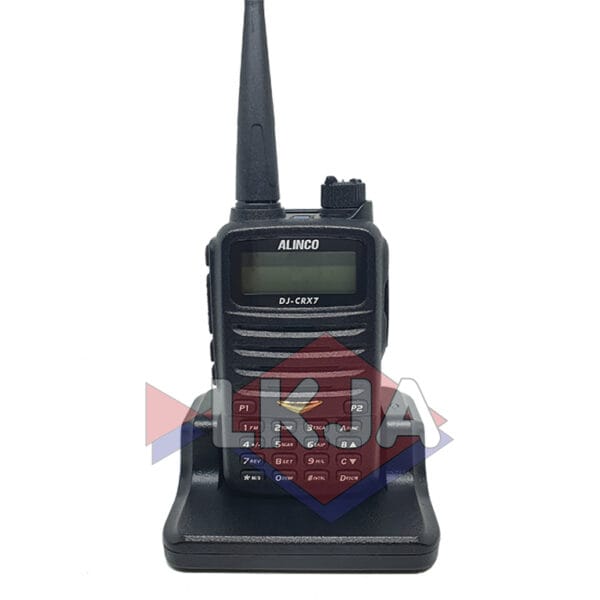

Alinco DJ-Crx7

General • Frequency Range : Freq. RX original status 130 to 174 F2 F3 only F2,F3,WFM Freq. TX F3 144-147.995 Freq. Stability +/-5ppm(-10 to +60c) Antenna Imp. 50 ohm unbalanced Supply Voltage DC 13.8V rated DC 6.0min to 16V max Ground Negative GND Current consumption TX 5W 1.2A approx. at 13.8V external source RX 200mA approx/300mW RX squelched 50mA approx. RX Batt.Save on 20mA app. Operating Temp. range -10 to +60 degrees C. Dimention w/o projection 56(W) x 124(H) x 40 (D) Transmitter Output power 5W 13.8V or EBP48N Low=0.5W Modulation Variable reactance Max. Deviation n/a Spurious emission less than -60db Microphone Imp. 2k ohms approx. Receiver Circuit Double superheterodyne 1st IF freq. 21.7Mhz 2nd IF freq. 450khz Sensitivity 12db SINAD better than -8dbu (0.2uV or less) Selectivity except WFM more than -6db/12khz less than -60db/28khz Image/spurious response less than -60db AF out at 10% distort.13.8V Max 300mW AF impedance 8 ohms Standard feature Expandible RX range none MARS/CAP mod. Yes DTMF tone encode DCS SQ enc/dec CTCSS SQ Enc/Dec 39tones Memory ch. 40ch non expandible Auto Dialer memory memory 9 memories, max 16 characters/memory Call channel Yes

• Frequency range: [TX] 144 - 148MHz, 420 - 450MHz [RX] 136 - 174MHz, 400 - 480MHz [ TX/RX] 144 - 146MHz, 430 - 440MHz • Modulation : F3E (FM) • Frequency step :2.5, 5, 6.25, 8.33, 10, 12.5, 20, 25, 30 and 50KHz • Memory channel :200 memory channels in total • Antenna impedance :50ohm unbalanced • Frequency stability :+/- 2.5ppm • Supply voltage :DC 7.4V (Battery) • Current consumption :1400mA TX / 300mA receive at Max audio output 70mA squelched • Battery-save ON :average 27mA • Temperature range :Unit -20 ~ +55digC (-4 ~ 131digF) • Battery packs : -10digC to +45digC (+14 to +113digF) • Dimensions :5,9W x 9,8H x 3,5D cm w/o projection • Weight :approx.227g or 8.01oz inclusive of battery pack and antenna Transmitter • Power Output: (Approx.value) : Approx.5 / 2.5 / 1W • Modulation : Variable reactance FM • Spurious emission : -60dB or less • Max. deviation : FM : +/- 5KHz NFM: +/- 2.5KHz Receiver • System : Direct-conversion • Sensitivity : Wide -12dBu / Narrow -9dBu • Intermediate frequency : 1st IF 38.85MHz, 2nd IF 450 KHz • Selectivity : -6dB : Wide 12kHz /Narrow 10kHz or more -60dB :Wide 30kHz / Narrow 24kHz or less • AF output :1W (10% distortion)

• Frequency Range : RX : 136 - 174 MHz : 400 - 480 MHz TX : 144 -148 (146 MHz) 136 - 174 (Asia) 430 - 450 (440 MHz) 400 - 480 (Asia) FM Broadcast : 65-108 MHz • Channel Steps : 5/10/12,5/15/20//25/50/100 KHz • Frequency Stability : ±2.5ppm + 14˚F to + 140˚F |- 10˚C to + 60˚C) • Emmision Type : F2D, F3E, F2A • Antenna Impedance : 50 Ohms • Current Cosumption : 190 mA (Recive) 200mW Output 95 mA (Standby,Saver Off) 23 mA (Standby Saver On • Operating temperature : -4˚F to +14˚F |- 20˚C to +60˚C • Case Size : 5,2cm x 9cm x 3cm TRANSMITTER • RF Power Output : 5W (High)/ 2,5W(Middle)/ 0,5W(Low) @7,4V with SBR-28LI • Modulation Type : Variable Reactance • Maximum Deviation : ±5.0KHz • Spurious Emmision : At Least 60dB down {@High and Middle Power} At least 50dB down {@Low power} • Microphone Impedance : 2k Ohms Receiver • Circuit Type : Direct-Conversion • Sensivity : 0,2V for 12dB SINAD {140 – 150MHz, NFM} 0,2V for 12dB SINAD {420 – 470MHz, NFM} * FT-4x only • Selectvity : 12KHz / 35KHz (-6dB /-60dB) • AF Output : MAX Power 1W@16Ohms, 0,8W @ 16 Ohms for 10% THD
